Examples

The repository currently includes:

• examples/example_spec.txt as a real six-column absorption plus emission spectrum

• examples/run_example_spec.py to reproduce the legacy four-panel plot

• examples/example_spec_fit.png as the saved output from the packaged workflow

• examples/example_spec_csv_outputs/ with example CSV products

Run the bundled example

python examples/run_example_spec.py

This creates:

• examples/example_spec_fit.png

• examples/example_spec_csv_outputs/Fulldata.csv

• examples/example_spec_csv_outputs/CNMonlydata.csv

• examples/example_spec_csv_outputs/WNMonlydata.csv

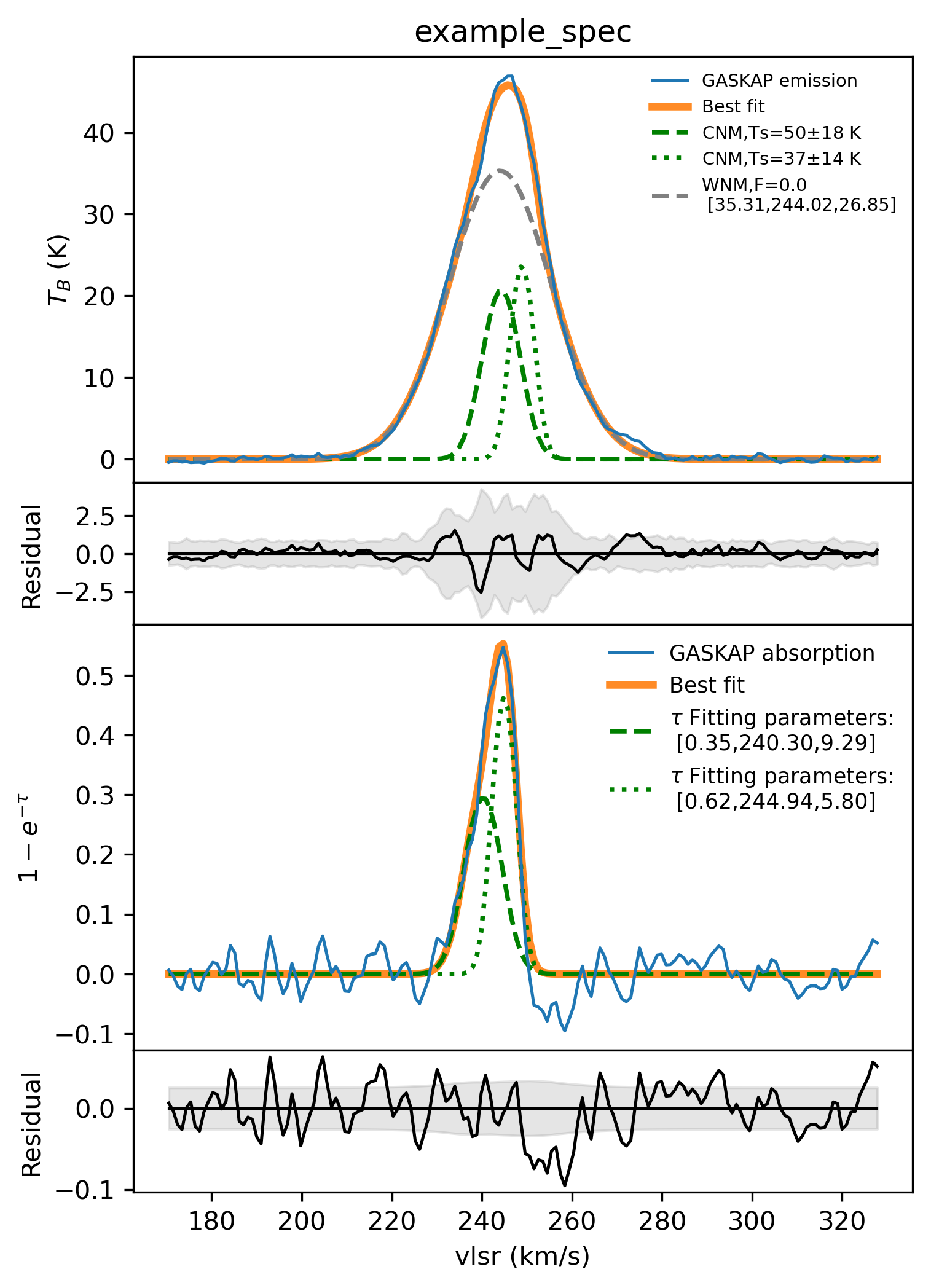

Example plot

The upper two panels show the emission spectrum, best-fit model, and emission residual. The lower two panels show the absorption spectrum in 1 - exp(-tau) form, the absorption fit, and its residual.
